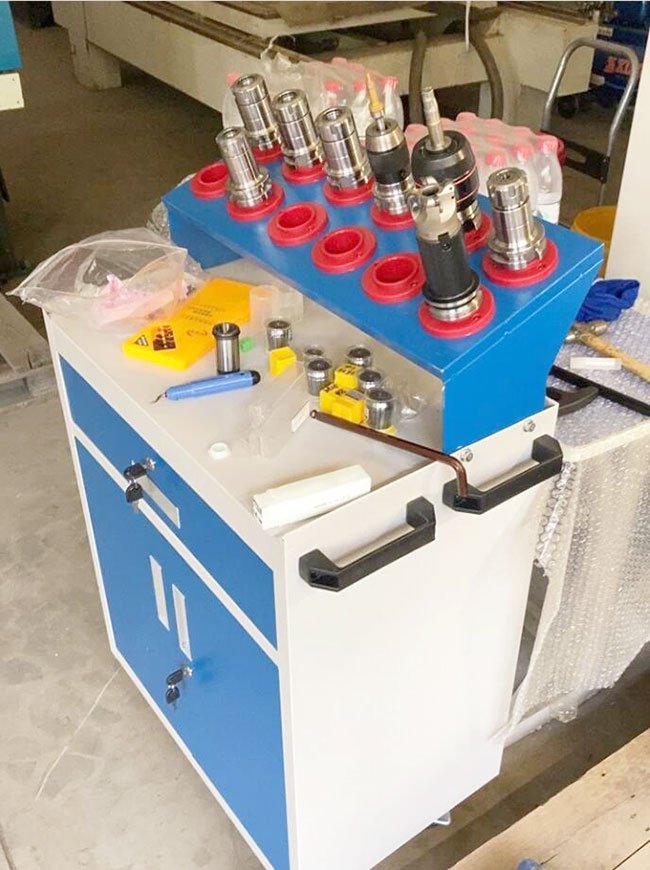

A Rolling Storage Cart Built for Smaller CNC Machine Shops
If your BT30 tool holders are stacked on benches or lying in open tool cabinets collecting dust, this cart is for you. It’s not designed to impress visitors in a large machining center. It’s built to solve real problems in smaller shops: limited floor space, disorganized tooling, and time wasted looking for the right holder.
This cart does three things well: keep tools organized, move easily around the shop, and take up minimal floor space. Every inch is put to use: a top deck with red ABS anti-slip trays, an internal enclosed tray, locking drawers, and an adjustable shelf — all packed into a footprint under one square meter, holding 20+ BT30 holders.

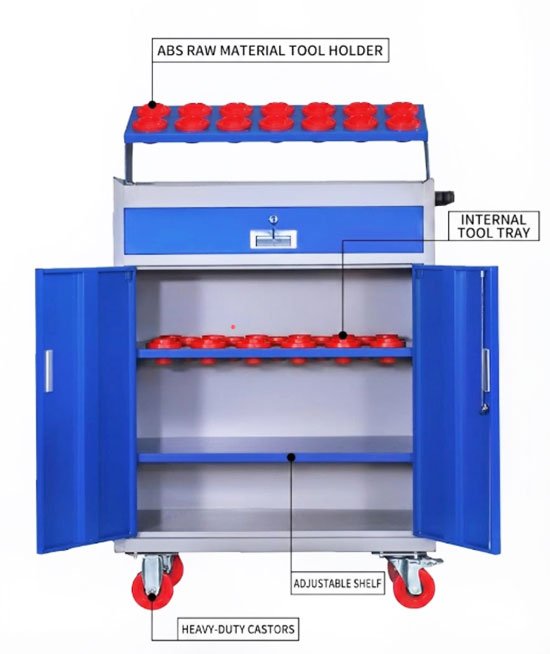

Product Structure — Every Component Solves a Problem

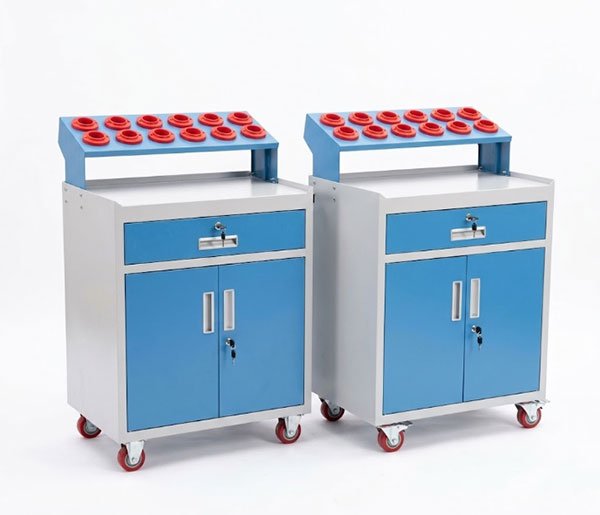

Red ABS Anti-Slip Tool Holder Tray (Top Deck)
The tray is the heart of this cart. Standard tool carts often come with flat plastic trays where holders wobble and tip over. Over time, the holder taper gets dinged up, and runout suffers.
This cart uses ABS injection-molded trays with a red wavy groove pattern. BT30 holders slide into the grooves and stay upright — no tipping, no sliding. When you need to change tools, you pull and go. No digging through a pile of lying holders.
Why red? You can spot the holders at a glance, even in dim shop lighting.
Internal Enclosed Tool Holder Tray (Middle Section)
The top deck holds your everyday tools. This internal tray holds your backups. Enclosed design keeps out chips, coolant spray, and dust. Precision holders that sit unused for weeks stay protected — not exposed to shop floor conditions.
Locking Drawers (Upper Section)
Inserts, wrenches, pull studs, gauges — small items that tend to walk off or get buried. These drawers lock. At the end of a shift, you lock them. Next morning, everything is where you left it. Drawer slides are cold-rolled steel, not plastic. They won’t sag under load.
Adjustable Shelf (Lower Section)
Shelf height is adjustable. BT30 tool trays, fixtures, gauges, even small workholding — it all fits. Your shop’s needs change over time. The shelf adapts.
Heavy-Duty Swivel Casters (Base)
Four casters with brakes. Fully loaded with holders, you can still push this cart across the shop. Not tiny wheels that lock up under weight — real industrial-grade casters that turn and roll. When you need to move the cart next to a different machine, you push it there, lock the brakes, and it becomes a mobile workstation.
Side Hooks
Wrenches, calipers, pull studs — hang them on the side. Keeps the top clear and your bench uncluttered. When 5S audit time comes around, you’re not scrambling.
BT30 Tool Holder Cart Specifications
| Item | Specification |
|---|---|
| Holder Type | BT30 (BT40-compatible with limitations — dedicated BT40 model recommended) |
| Tray Material | ABS injection-molded, red, wavy anti-slip groove pattern |
| Cabinet Material | Cold-rolled steel, blue finish |
| Drawer Count | 3–5 (customizable) |
| Drawer Lock | Yes, standard |
| Shelf | Adjustable height |
| Casters | 4-inch heavy-duty swivel with brakes |
| Approx. Dimensions | 800×600×1200mm (confirm with actual unit) |
Why Smaller CNC Shops Need This Cart
Problem 1: Holders Stacked on Benches, Time Wasted Searching
Smaller shops don’t have massive tool cabinets. Holders end up on benches or tossed in toolboxes. When it’s time to change tools, the operator spends minutes looking. This cart gives every holder a fixed spot. Reach, grab, done. Search time drops from minutes to seconds.
Problem 2: Holder Taper Damage from Tipping and Clattering
BT30 holders require clean tapers for runout accuracy. One drop, one clang against another holder, and concentricity suffers. Standard carts with flat trays let holders wobble and tip. The ABS wavy-groove tray keeps holders upright and separated. Less impact, less damage.
Problem 3: Limited Floor Space, Big Cabinets Won’t Fit
Smaller CNC shops run tight. One machining center, one lathe, one mill — and the floor is full. This cart takes up less than one square meter. Height is controlled at around 1.2 meters. Push it next to a machine without blocking walkways or operator movement.
Problem 4: Tooling Chaos, 5S Audit Panic
Holders, inserts, wrenches, gauges mixed together. Shop looks messy. This cart’s compartmental design gives each item type a home. Drawers for small parts, trays for holders, shelf for fixtures, side hooks for quick-access tools. When 5S audit comes, the shop is already organized.
BT30 Tool Holder Cart Applications
| Application | Description |
|---|---|
| Small CNC Machine Shops | 3–10 machines, limited space, need mobile tooling management |
| Mold Shop Auxiliary Areas | Large machining centers have fixed tool libraries; auxiliary areas need rolling carts |
| New Machine Setup | Adding a BT30 machining center? Add a matching tool cart at the same time |
| Shop 5S Improvement | Disorganized tooling? Need a system that scales |
FAQ
Q: How many BT30 holders does this cart hold?
Top tray: approximately 12–15 holders. Internal tray: 8–12 holders. Exact capacity depends on holder length and tool assembly. With the adjustable shelf holding additional trays, total capacity can exceed 20 holders.
Q: Can I use BT40 holders in this cart?
BT40 holders have a larger taper diameter. We recommend the dedicated BT40 model. If you mix BT30 and BT40 in the same cart, the top tray may not accept BT40 holders, but the internal shelf remains usable.
Q: Can the casters handle the weight? Is the cart easy to push when fully loaded?
The 4-inch industrial swivel casters include brakes. Fully loaded with BT30 holders, an adult can push the cart on a flat shop floor. Actual rollability depends on floor condition and load distribution.
Q: Do the drawers lock?
Yes. Standard configuration includes locking drawers. Lock them at the end of a shift to prevent tool walk-off.
Q: Can I customize the color?
Red ABS trays are standard. Cabinet color is selectable. For batch orders, contact the factory to discuss custom configurations.
Q: What are the shipping options?
Sea freight, air freight, and rail transport are available. The cart can ship fully assembled or knocked-down, depending on your preference and destination. Freight cost varies by destination and shipping method.
Q: What is the warranty policy?
Warranty terms are negotiated per order. The factory provides technical support and spare parts for any issues that arise. Contact us for specific warranty terms.
Why Choose Hengna?
- Factory Direct: No middleman, straightforward pricing, direct after-sales support
- ABS Material Trays: Not recycled plastic, not cheap substitute — real ABS injection molding
- Cold-Rolled Steel Body: Proper thickness, solid welds
- Global Export: Sea/air freight options to North America, Europe, Southeast Asia, Middle East
- Customization: Dimensions, colors, drawer counts — adjustable to your shop’s requirements
Next Steps
If your BT30 holders need a permanent home in your shop, this cart is the answer. Compact footprint, serious capacity, mobile where you need it.
Contact us for current pricing, dimension drawings, and lead time.
