Machine Shops Heavy Duty 4-Drawer Tool Cart with Pegboard Product Description
On a busy machine shop floor, every minute spent hunting for a missing caliper or digging through a jumbled toolbox is a minute lost from actual machining. Tool organization isn’t a back-burner operational issue — it directly affects changeover time, job throughput, and the condition of precision instruments worth hundreds of dollars each. This heavy duty 4-drawer tool cart with pegboard top is purpose-built for machine shop environments, combining the storage capacity machinists need with the durability industrial floors demand.
Unlike general-purpose workshop carts, this unit addresses the specific conditions found in machining operations: exposure to cutting fluids, vibration from nearby CNC equipment, and the constant need to move tools between workstations. Every design decision — from the sealed drawer system to the chemical-resistant powder coating — traces back to problems our engineering team observed in real machine shop workflows over a decade of manufacturing industrial storage equipment for workshops across North America and Europe.
Who is this tool cart for? CNC machinists who need quick access to measuring tools between cuts. Tool setters managing multiple tool sets across shift changes. Maintenance technicians performing equipment service in tight production schedules. Any machine shop where tool accessibility and floor-level mobility directly impact daily output.
Built for Machine Shop Conditions
What Makes This Different from a Standard Workshop Cart
A standard garage tool cart handles workshop clutter. A machine shop tool cart has to handle a fundamentally harsher environment. Here’s what separates this unit from general-duty alternatives:
Sealed Drawer System — Protects Against Coolant and Metal Chips
Open-frame tool organizers expose tools to airborne coolant mist and metal chips that settle on surfaces during machining operations. Coolant exposure corrodes precision measuring instruments; metal chips lodged in a micrometer can render it inaccurate. The sealed drawer system on this tool cart keeps contents protected from contamination — drawers feature full-wrap sidewalls and a dust-resistant closing mechanism that prevents debris from entering when the cart is stationary or in motion.
Industrial Powder Coating — Chemical and Fluid Resistance
Machine shop floors see daily contact with cutting oils, water-based coolants, and cleaning solvents. Standard paint finishes degrade quickly under this exposure. This tool cart uses an electrostatic epoxy-polyester powder coating — the same finish specification we apply across our industrial storage product line for clients in metalworking facilities. The coating bonds at a molecular level to the steel substrate, creating a surface that resists chipping, peeling, and chemical etching far more effectively than conventional wet-applied paint.
Pegboard Top — Frequently Used Tools Always Within Reach
The 390mm pegboard top section provides immediate access to tools machinists reach for dozens of times per shift: deburring tools, Allen keys, speed wrenches, and manual measuring instruments. These items don’t belong inside a drawer — retrieving them from a pegboard takes under two seconds and keeps them visible so you can confirm at a glance whether a tool is in its place or still at the machine.
Drawer Configuration — Organized for Machine Shop Workflows
The four-drawer layout is designed around the typical tool inventory of a machining operation:
Top Drawer (Shallow) — Precision measuring instruments: digital calipers, micrometers, dial indicators, thread gauges. These items need flat, padded storage to maintain calibration alignment.
Second Drawer (Medium Depth) — Hand tools used throughout the shift: open-end wrenches, combination wrenches, pliers, precision screwdrivers. Organized by type or size for fast retrieval.
Third Drawer (Deep) — Power tools and consumables: cordless drill, tap and die sets, drill bits, countersinks. Items that take up more space but don’t need to be at the pegboard level.
Bottom Drawer (Extra Deep) — Bulky items and safety equipment: heavy vises, hammers, protective gloves, safety glasses, spare parts kits. Maximizes storage for infrequently accessed but essential items.
Each drawer runs on full-extension ball-bearing slides. Non-slip drawer liners are included to prevent tool movement during transport.
Floor-Level Mobility — Move the Station, Not the Machinist
Four Industrial Casters — 100mm Swivel Wheels with Locking Brakes
With a bottom clearance of 130mm, the cart rolls freely over typical machine shop floor conditions including small debris, cable covers, and floor joints. The four swivel casters allow 360-degree maneuvering in tight aisles between CNC machines. Both front casters feature locking brakes to secure the cart in position during precision work — a critical safety feature when the cart is positioned next to an operating machine.
Stable Wide-Stance Design
The 570mm × 570mm footprint provides a low center of gravity for stable handling even when the bottom drawer is at full capacity.

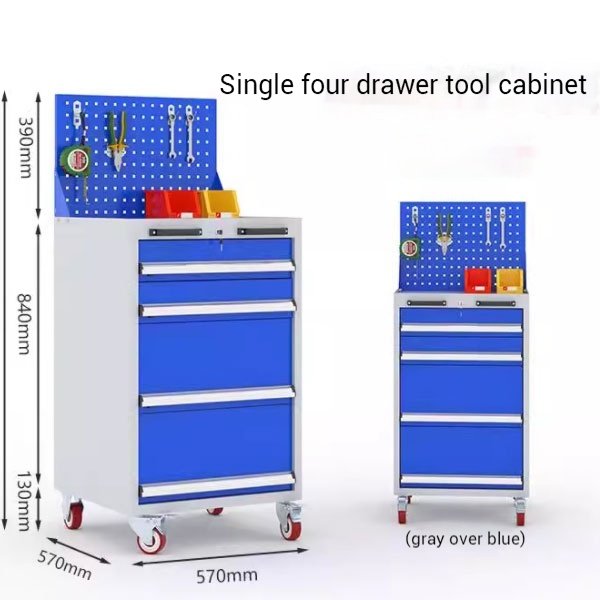

Machine Shops Heavy Duty 4-Drawer Tool Cart Specifications
| Attribute | Measurement |
|---|---|
| Overall Dimensions | 840mm H × 570mm W × 570mm D |
| Pegboard Top Height | 390mm |
| Bottom Clearance | 130mm |
| Number of Drawers | 4 (shallow / medium / deep / extra deep) |
| Drawer Slide Type | Full-extension ball-bearing slides |
| Caster Specifications | 100mm swivel casters, locking brakes on front wheels |
| Frame Material | Heavy-gauge cold-rolled steel |
| Surface Treatment | Electrostatic epoxy-polyester powder coating |
| Warranty | 1-year limited warranty against manufacturing defects |
Frequently Asked Questions
Q: Will this tool cart fit through standard machine shop aisle widths?
At 570mm wide, this cart passes through standard manufacturing aisle widths (typically 900mm minimum). The 130mm under-frame clearance handles most floor cable covers and small floor joints without snagging. Measure your narrowest aisle before ordering — also account for the drawer sweep when fully open.
Q: How does the powder coating hold up against water-based coolants used in CNC operations?
The epoxy-polyester powder coating resists mineral oils, water-based cutting fluids, and common shop solvents. It performs well in machining environments but is not rated for direct chemical immersion or exposure to highly acidic/alkaline cleaning agents. Wipe up coolant spills promptly and add a floor mat under the cart for maximum coating lifespan.
Q: What size pegboard hooks and accessories are compatible?
Standard 6mm (1/4-inch) round pegboard hole spacing — the most common industrial pegboard standard in North America. Standard hooks, rails, and bins from Grainger, MSC, or Fastenal are all compatible.
Q: Can I lock the drawers to prevent unauthorized access?
Yes. A built-in cam lock secures the top and second drawers with a single key. Spare keys included. Key-alike systems available for bulk orders to match locks across multiple units.
Q: What is the lead time for a sample order?
Sample orders ship within 10-15 business days. Bulk orders (5+ units): 20-30 business days depending on production schedule. Contact our sales team for current lead time.
